Verbindung Case Fan zu Motherboard keine passende Verbindung?

Kavalor

Newbie
Registriert
Apr. 2018
Beiträge
5
Ich bau gerade an einem neuen PC .
Case : Coolermaster 500P
Mainboard: Asus Crosshair VII Hero

Problem ist die Case Fans passen nicht auf das Mainboard Chassis Fan Connection.

Die Mainboard hat fuer die Case Fans 4 Pin male genau wie beim CPU Fan.

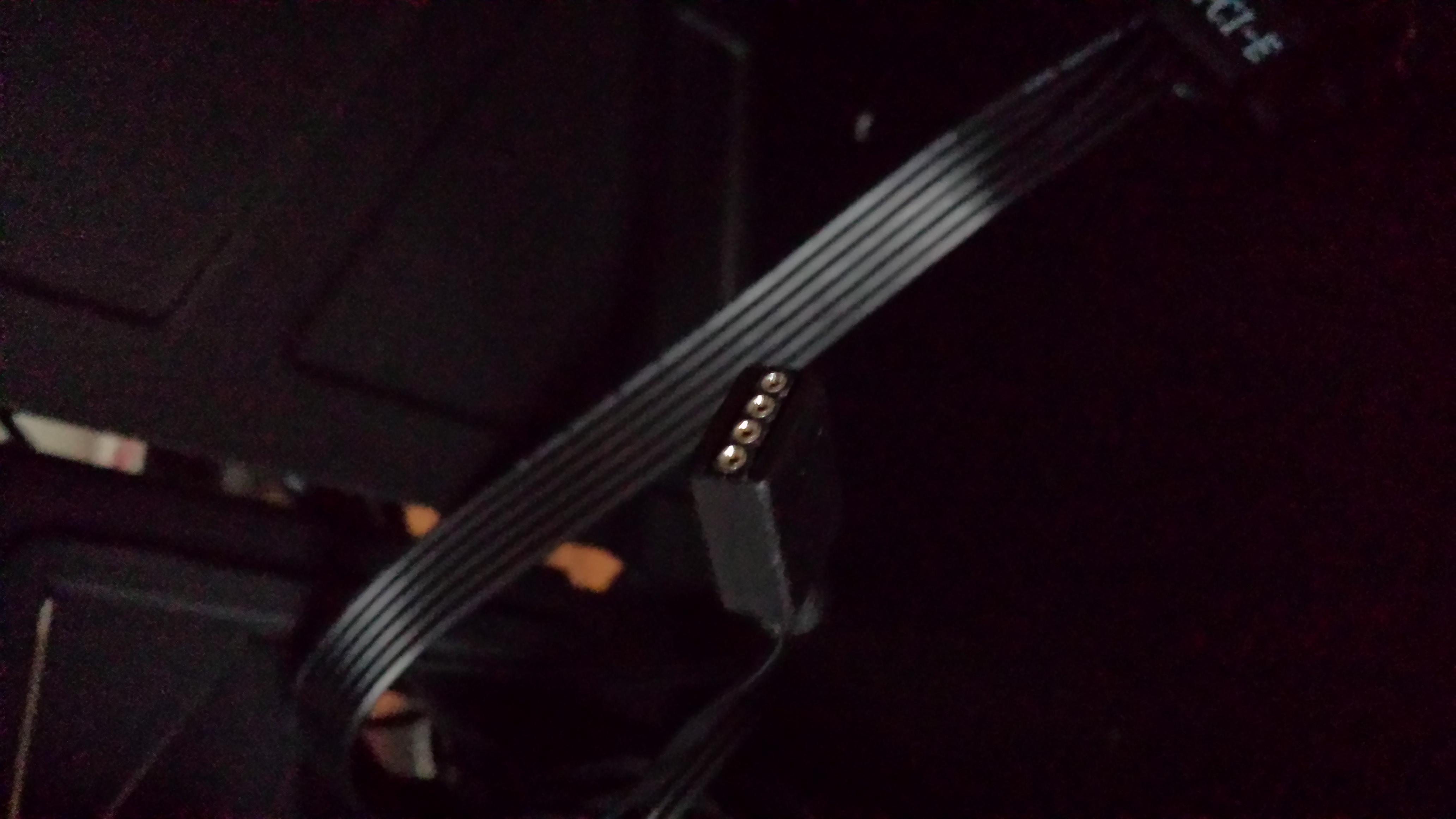

Die Case Fans haben aber keinen passenden Connector


Anhänge

  • Connector.jpg
    1,7 MB · Aufrufe: 355
Sieht eher nach LED RGB Connector aus. Würde auf dem Mainboard nach dem "4-pin AURA RGB header" schauen und es dort versuchen.

TWO PRE-INSTALLED 200MM RGB FANS*

*Additional controller or compatible motherboard required for RGB functionality.

Was steht im Handbuch?

Zuletzt bearbeitet:
das ist ein RGP Conector, das gehäuse hat RGB Lüfterbeleuchtung.....

techpowerup.com: Cooler Master Mastercase H500P Review (translate)
All the I/O cables are pretty standard, but there are a few nice surprises. Firstly, Cooler Master includes a 3-to-1 adapter for the fans, allowing you to connect all three included cooling units to a single header. On top of that, you will find an RGB cable adapter, which allows for up to three 4-pin RGB elements to be connected to a controller or the motherboard. The adapter cable is of very high quality and is brand agnostic so that you may use any motherboard or controller board as long as it offers the 4-pin header. Another advantage of the generic connection is the ability to expand the number of lighting elements within the H500P.
Lüfter





4-pin RGB

Danke fuer eure Hilfe. Werde es dann morgen probieren. Handbuch gruendlicher lesen, hilft dann doch weiter.
Ergänzung ()

Ok die Luefter laufen, jetzt das System leider nicht. Danke fuer eure Hilfe ei diesem Thema , da werde ic nochmal nen neuen Thread aufmachen.
