Zeigt euren Desktop her

[D.S.i.u.S.]

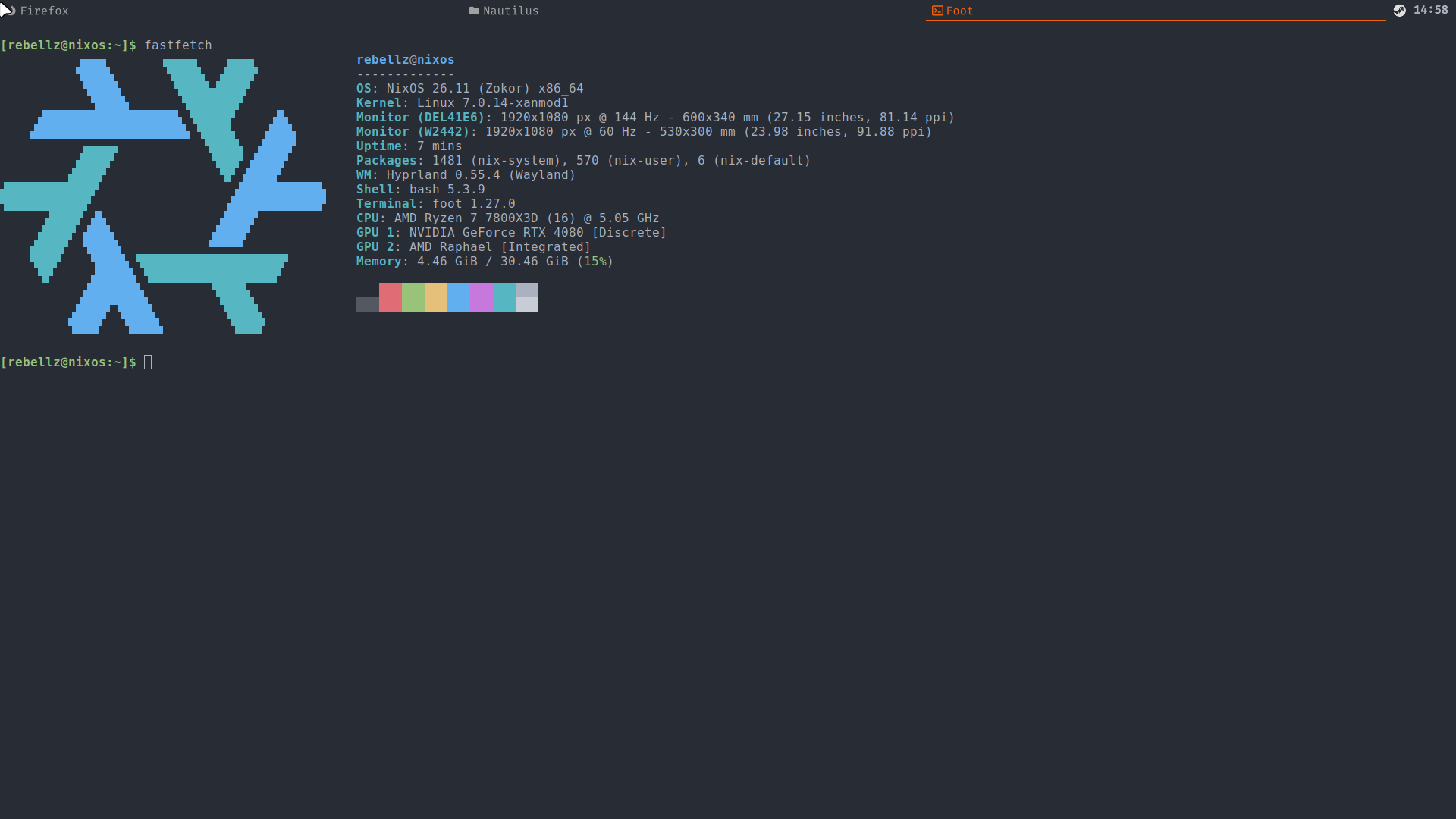

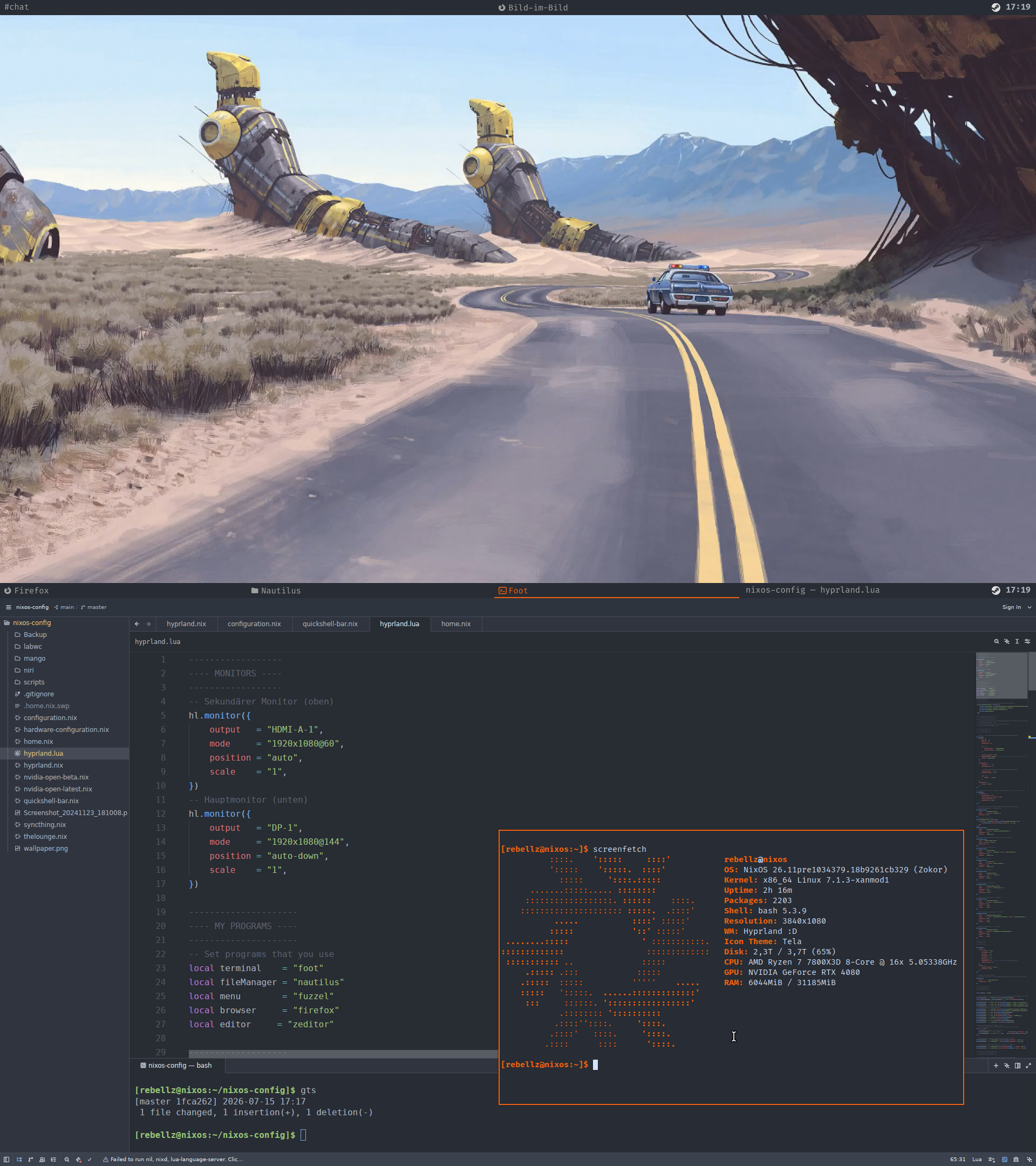

OS: NixOS 26.11.20260702.6517942 (Zokor)
Kernel ist Xanmod mit scx_lavd scheduler (rebuild mit zen kernel war nicht möglich)
Wieder bei Hyprland 0.55.4 angekommen aber diesmal mit hyprland.lua
Layout ist Scrolling mit column_width = 1.0, was quasi maximierte Fenster bedeutet.
GTK Cursor ist Bibata-Modern-Ice
GTK Icons + Theme ist Tela
Es sind zwei Monitore je 1920 x 1080

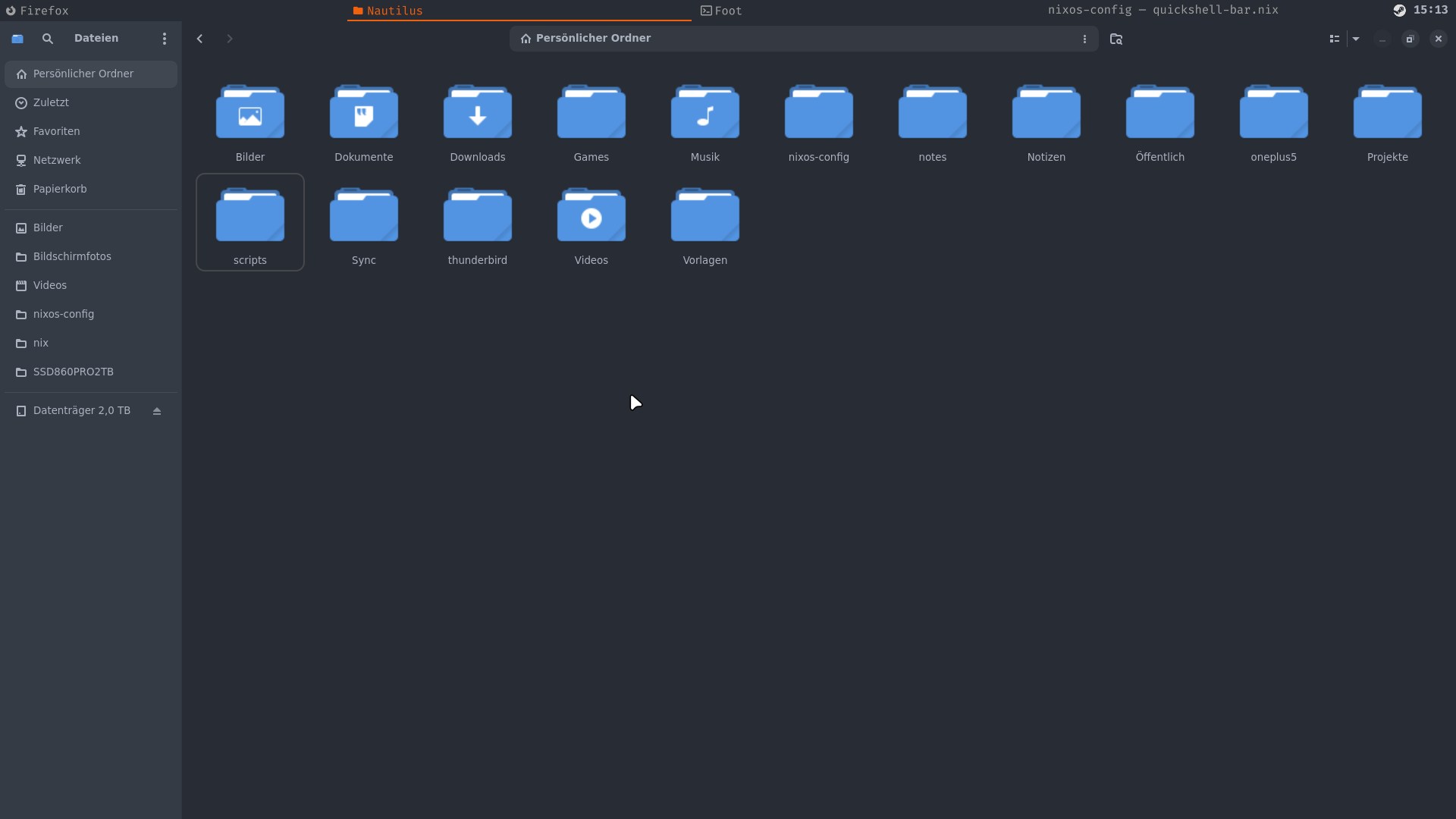

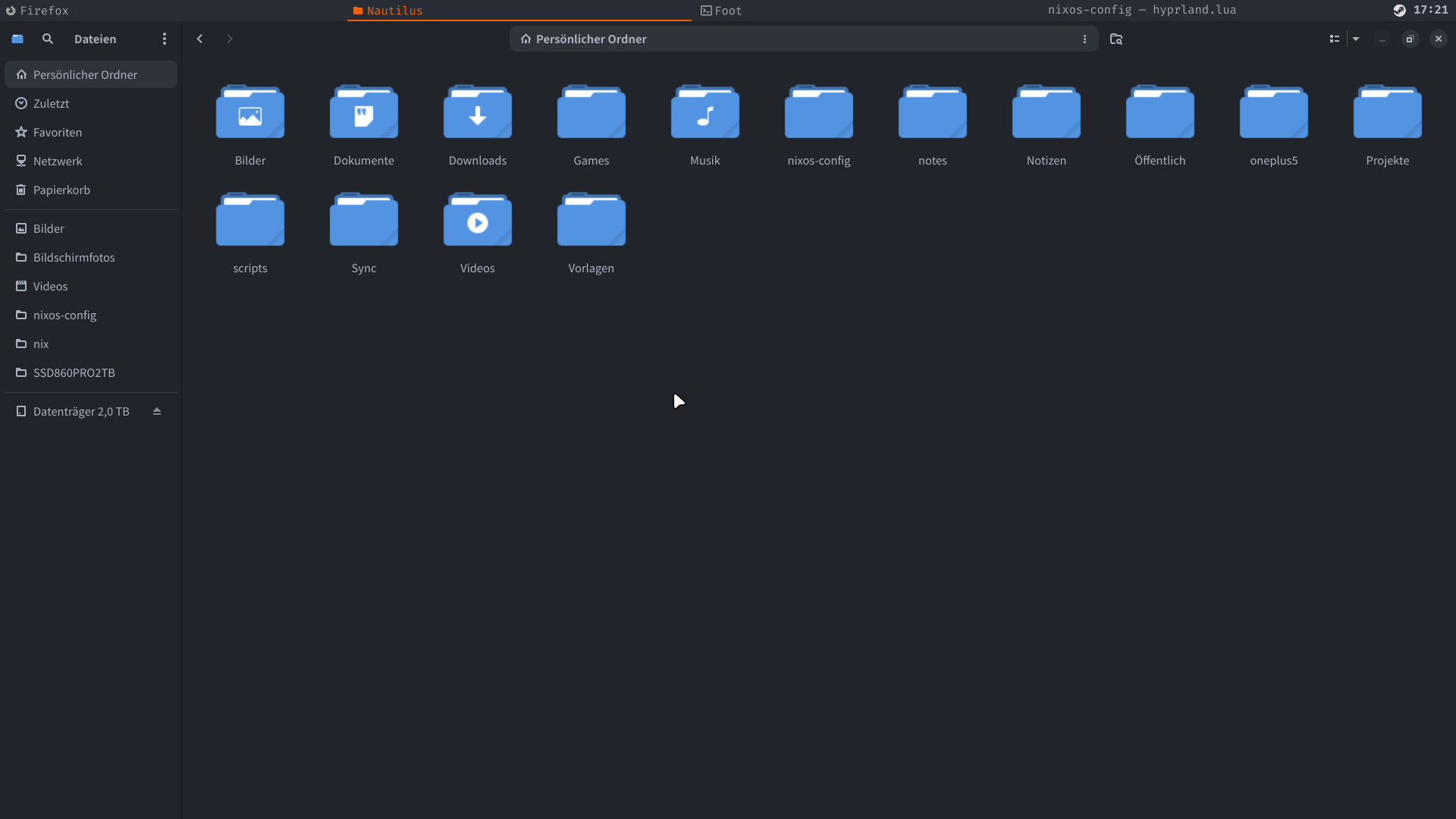

Oben habe ich meine eigene Qucikshell Leiste mit Systemtray, Taskbar (ButtonsBreite ist dynamisch), Uhrzeit und Title format. Mit Mittelklick auf Taskabar Buttons kann man Fenster schließen oder mit SUPER + Q. Kontextmenü in Systemtray funktioniert auch. Als Nächstes will ich die Leiste um Benachrichtigungen mit Klick auf Uhrzeit erweitern. Mit title format sind es nur 323 Zeilen code.

Eigene Firefox Theme will ich auch noch erstellen.

Screenshot-Binds (Super + Alt + A / S / D) habe ich in Region(A), Monitor(S) und kompletter Desktop(D) aufgeteilt. Von Links nach Rechts, von Klein auf Groß.

-- Screenshot-Binds (Super + Alt + A / S / D)
hl.bind(mainMod .. " + ALT + A", hl.dsp.exec_cmd([[sh -c "grim -g \"$(slurp)\" /home/rebellz/Bilder/Bildschirmfotos/Screenshot_$(date +%Y-%m-%d_%H-%M-%S).png && notify-send 'Screenshot' 'Region gespeichert'"]]))
hl.bind(mainMod .. " + ALT + S", hl.dsp.exec_cmd([[sh -c "grim -o $(slurp -p -o -f %o) /home/rebellz/Bilder/Bildschirmfotos/Monitor_$(date +%Y-%m-%d_%H-%M-%S).png && notify-send 'Screenshot' 'Monitor gespeichert'"]]))
hl.bind(mainMod .. " + ALT + D", hl.dsp.exec_cmd([[sh -c "grim /home/rebellz/Bilder/Bildschirmfotos/Gesamt_$(date +%Y-%m-%d_%H-%M-%S).png && notify-send 'Screenshot' 'Kompletter Desktop gespeichert'"]]))

Meine hyprland.lua und qucikshell-bar.nix werde ich noch nachreichen.

Spoiler: hyprland.lua

------------------
---- MONITORS ----
------------------
-- Sekundärer Monitor (oben)
hl.monitor({
    output   = "HDMI-A-1",
    mode     = "1920x1080@60",
    position = "auto",
    scale    = "1",
})
-- Hauptmonitor (unten)
hl.monitor({
    output   = "DP-1",
    mode     = "1920x1080@144",
    position = "auto-down",
    scale    = "1",
})

---------------------
---- MY PROGRAMS ----
---------------------
-- Set programs that you use
local terminal    = "foot"
local fileManager = "nautilus"
local menu        = "fuzzel"
local browser     = "firefox"
local editor     = "zeditor"

-------------------
---- AUTOSTART ----
-------------------
-- See https://wiki.hypr.land/Configuring/Basics/Autostart/
 hl.on("hyprland.start", function ()
     hl.exec_cmd("swaybg -i /home/rebellz/nixos-config/Screenshot_20241123_181008.png")
     hl.exec_cmd("steam -nochatui -nofriendsui -silent")
     hl.exec_cmd("hyprctl dispatch workspace 1")
     hl.exec_cmd("firefox")
 end)

-------------------------------
---- ENVIRONMENT VARIABLES ----
-------------------------------
-- See https://wiki.hypr.land/Configuring/Advanced-and-Cool/Environment-variables/
 hl.env("XCURSOR_SIZE", "24")
 hl.env("HYPRCURSOR_SIZE", "24")

-----------------------
---- LOOK AND FEEL ----
-----------------------

-- Refer to https://wiki.hypr.land/Configuring/Basics/Variables/
hl.config({
    general = {
        gaps_in  = 0,
        gaps_out = 0,
        border_size = 0,

        col = {
            active_border   = "0xffF2610D",
            inactive_border = "0xff282C34",
        },

        resize_on_border = false,
        allow_tearing = false,
        layout = "scrolling",
    },

    decoration = {
        rounding       = 0,
        rounding_power = 0,

        -- Change transparency of focused and unfocused windows
        active_opacity   = 1.0,
        inactive_opacity = 1.0,

        blur = {
            enabled   = false,
        },
    },
    animations = {
        enabled = false,
    },
})

------------------------- SCROLLING LAYOUT CONFIG -------------------------
hl.config({
    scrolling = {
        column_width = 1.0,
        fullscreen_on_one_column = true,
        focus_fit_method = 1,
        follow_focus = true,
    },
})

-- Ref https://wiki.hypr.land/Configuring/Basics/Workspace-Rules/
-- Firefox → Workspace 1, Monitor DP-1
hl.window_rule({
    name      = "firefox-to-ws1",
    match     = { class = "firefox" },
    workspace = "1",
})
-- theLounge → Workspace 2
hl.on("window.title", function(w)
    if w.class == "firefox" and w.title:find("localhost:9000") then
        hl.dispatch(hl.dsp.window.move({ workspace = "2" }))
    end
end)
hl.window_rule({
    name      = "thelounge-to-ws2",
    match     = { title = "http://localhost:9000" },
    workspace = "2",
    monitor   = "HDMI-A-1",
})
-- Fenster im Floating-Modus: Border auf 2 Pixel setzen
hl.window_rule({
    name  = "float-border-size",
    match = { float = true },
    border_size = 2,
})
-- Bild-im-Bild → Workspace 2
hl.window_rule({
    name      = "pip-to-ws2",
    match     = { class = "firefox", title = "Bild-im-Bild" },
    workspace = "2",
    monitor   = "HDMI-A-1",
})
-- Regel für Brave PiP
hl.window_rule({
    name      = "pip-brave",
    match     = { title = "Bild im Bild" },
    workspace = "2",
    monitor   = "HDMI-A-1",
})
-- Steam UI → Workspace 1
hl.window_rule({
    name      = "steam-to-ws1",
    match     = { class = "steam" },
    workspace = "1",
    monitor   = "DP-1",
})

-- Steam Spiele → Workspace 3
hl.window_rule({
    name      = "steam-games-to-ws1",
    match     = { class = "steam_app_.*" },
    workspace = "3",
    monitor   = "DP-1",
    fullscreen = true,
})

-- Battle.net → Workspace 1, floating
hl.window_rule({
    name      = "battlenet-float",
    match     = { title = "Battle%.net" },
    workspace = "1",
    float     = true,
    center    = true,
})

---------------
---- INPUT ----
---------------

hl.config({
    input = {
        kb_layout  = "de",
        kb_variant = "",
        kb_model   = "",
        kb_options = "",
        kb_rules   = "",
        follow_mouse = 1,
        sensitivity = 0, -- -1.0 - 1.0, 0 means no modification.
        focus_on_close = 2,
    },
    cursor = {
        default_monitor = "DP-1",
        no_warps = true,
    },
})

-- Example per-device config
-- See https://wiki.hypr.land/Configuring/Advanced-and-Cool/Devices/ for more
hl.device({
    name        = "epic-mouse-v1",
    sensitivity = -0.5,
})

---------------------
---- KEYBINDINGS ----
---------------------

local mainMod = "SUPER"

-- Example binds, see https://wiki.hypr.land/Configuring/Basics/Binds/ for more
hl.bind(mainMod .. " + Return", hl.dsp.exec_cmd(terminal))
local closeWindowBind = hl.bind(mainMod .. " + Q", hl.dsp.window.close())
-- Screenshot-Binds (Super + Alt + A / S / D)
hl.bind(mainMod .. " + ALT + A", hl.dsp.exec_cmd([[sh -c "grim -g \"$(slurp)\" /home/rebellz/Bilder/Bildschirmfotos/Screenshot_$(date +%Y-%m-%d_%H-%M-%S).png && notify-send 'Screenshot' 'Region gespeichert'"]]))
hl.bind(mainMod .. " + ALT + S", hl.dsp.exec_cmd([[sh -c "grim -o $(slurp -p -o -f %o) /home/rebellz/Bilder/Bildschirmfotos/Monitor_$(date +%Y-%m-%d_%H-%M-%S).png && notify-send 'Screenshot' 'Monitor gespeichert'"]]))
hl.bind(mainMod .. " + ALT + D", hl.dsp.exec_cmd([[sh -c "grim /home/rebellz/Bilder/Bildschirmfotos/Gesamt_$(date +%Y-%m-%d_%H-%M-%S).png && notify-send 'Screenshot' 'Kompletter Desktop gespeichert'"]]))
-- closeWindowBind:set_enabled(false)
hl.bind(mainMod .. " + Escape", hl.dsp.exec_cmd("command systemctl poweroff"))
hl.bind(mainMod .. " + M", hl.dsp.exec_cmd("command -v hyprshutdown >/dev/null 2>&1 && hyprshutdown || hyprctl dispatch 'hl.dsp.exit()'"))
hl.bind(mainMod .. " + N", hl.dsp.exec_cmd(fileManager))
hl.bind(mainMod .. " + B", hl.dsp.exec_cmd(browser))
hl.bind(mainMod .. " + V", hl.dsp.window.float({ action = "toggle" }))
hl.bind(mainMod .. " + SUPER_L", hl.dsp.exec_cmd(menu))
hl.bind(mainMod .. " + P", hl.dsp.window.pseudo())
hl.bind(mainMod .. " + T", hl.dsp.exec_cmd("thunderbird"))
hl.bind(mainMod .. " + code:104", hl.dsp.exec_cmd(editor))

-- Switch workspaces with mainMod + [0-9]
-- Move active window to a workspace with mainMod + SHIFT + [0-9]
for i = 1, 10 do
    local key = i % 10 -- 10 maps to key 0
    hl.bind(mainMod .. " + " .. key,             hl.dsp.focus({ workspace = i}))
    hl.bind(mainMod .. " + ALT + " .. key,     hl.dsp.window.move({ workspace = i }))
end

-- Scroll through existing workspaces with mainMod + scroll
hl.bind(mainMod .. " + mouse_down", hl.dsp.focus({ workspace = "e+1" }))
hl.bind(mainMod .. " + mouse_up",   hl.dsp.focus({ workspace = "e-1" }))

-- Move/resize windows with mainMod + LMB/RMB and dragging
hl.bind(mainMod .. " + mouse:272", hl.dsp.window.drag(),   { mouse = true })
hl.bind(mainMod .. " + mouse:273", hl.dsp.window.resize(), { mouse = true })

--------------------------------
---- WINDOWS AND WORKSPACES ----
--------------------------------

-- See https://wiki.hypr.land/Configuring/Basics/Window-Rules/
-- and https://wiki.hypr.land/Configuring/Basics/Workspace-Rules/

-- Workspace 2 und 4 → HDMI-A-1 (Monitor 2, oben)
hl.workspace_rule({ workspace = "2", monitor = "HDMI-A-1" })
hl.workspace_rule({ workspace = "4", monitor = "HDMI-A-1" })

-- Workspace 1 und 3 → DP-1 (Monitor 1, unten)
hl.workspace_rule({ workspace = "1", monitor = "DP-1", default = true })
hl.workspace_rule({ workspace = "3", monitor = "DP-1", default = true })

hl.window_rule({
    -- Fix some dragging issues with XWayland
    name  = "fix-xwayland-drags",
    match = {
        class      = "^$",
        title      = "^$",
        xwayland   = true,
        float      = true,
        fullscreen = false,
        pin        = false,
    },

    no_focus = true,
})

quckshell-bar.nix erstellt TitleFormat.qml und shell.qml
shell.qml Code habe ich überarbeitet, sodass man Font und fontSize an einer Stelle für die gesamte Leiste ändern kann. Vorher war für jedes Objekt Font Fira Code und Size 13 oder 15 definiert. Von 323 auf 305 Zeilen reduziert.

Spoiler: quickshell-bar.nix

{ config, pkgs, lib, ... }: {
  programs.quickshell = {
    enable = true;
    activeConfig = "minibar";
    systemd.enable = true;
  };

  xdg.configFile."quickshell/minibar/TitleFormat.qml".text = ''
    pragma Singleton
    import QtQuick
    QtObject {
      function format(appId, title) {
          var id = appId ? appId.toLowerCase() : "";
          // Titel zuerst
          if (title) {
              if (title.indexOf("Bild-im-Bild") !== -1) return "󰈹 Bild-im-Bild";
              if (title.indexOf("localhost:9000") !== -1) return "#chat";
              if (title.indexOf("The Lounge") !== -1) return "#chat";
          }
          // Dann app-id
          if (id === "firefox")                        return "󰈹 Firefox";
          if (id === "foot")                           return " Foot";
          if (id === "thunderbird")                    return "󰇮 Thunderbird";
          if (id === "org.gnome.nautilus")             return "󰉋 Nautilus";
          return title || appId || "?";
      }
    }
  '';

  xdg.configFile."quickshell/minibar/shell.qml".text = ''
    import QtQuick
    import QtQuick.Layouts
    import Quickshell
    import Quickshell.Wayland
    import Quickshell.Services.SystemTray

    Variants {
      model: Quickshell.screens
      PanelWindow {
        id: bar
        required property var modelData
        screen: modelData
        anchors { top: true; left: true; right: true }
        implicitWidth: screen.width
        implicitHeight: 28
        exclusiveZone: 28
        color: "#282c34"

        // --- Font und fontSize global ---
        readonly property string barFontFamily: "Fira Code"
        readonly property int fontSize: 15

        property var activeItem: null
        property Item activeAnchor: null

        PopupWindow {
          id: trayMenu
          visible: bar.activeItem !== null
          anchor.window: bar
          anchor.item: (bar.activeAnchor instanceof Item) ? bar.activeAnchor : null
          anchor.rect.y: 28
          anchor.rect.x: -170
          implicitWidth: 220
          implicitHeight: menuColumn.contentHeight + 16
          color: "transparent"

          HoverHandler {
            onHoveredChanged: {
              if (!hovered) closeTimer.start();
              else closeTimer.stop();
            }
          }

          Timer {
            id: closeTimer
            interval: 300
            onTriggered: bar.activeItem = null
          }

          QsMenuOpener {
            id: menuOpener
            menu: bar.activeItem ? bar.activeItem.menu : null
          }

          Rectangle {
            anchors.fill: parent
            color: "#353b45"
            border.color: "#3e4451"
            border.width: 1
            radius: 4

            Column {
              id: menuColumn
              width: 210
              anchors.horizontalCenter: parent.horizontalCenter
              spacing: 2
              topPadding: 5
              bottomPadding: 5

              property real contentHeight: {
                var h = topPadding + bottomPadding;
                for (var i = 0; i < repeater.count; i++) {
                  var child = repeater.itemAt(i);
                  if (child && child.visible) h += child.height + spacing;
                }
                return Math.max(h - spacing, 0);
              }

              Repeater {
                id: repeater
                model: menuOpener.children
                delegate: Rectangle {
                  width: 200
                  height: modelData.isSeparator ? 4 : 30
                  color: rowMouse.containsMouse ? "#3e4451" : "transparent"
                  radius: 3
                  visible: modelData.visible !== undefined ? modelData.visible : true
                  anchors.horizontalCenter: parent.horizontalCenter

                  Rectangle {
                    visible: modelData.isSeparator
                    anchors.centerIn: parent
                    width: parent.width - 10
                    height: 1
                    color: "#545862"
                  }

                  Text {
                    visible: !modelData.isSeparator
                    anchors {
                      left: parent.left
                      leftMargin: 10
                      verticalCenter: parent.verticalCenter
                    }
                    text: modelData.text.replace("&", "")
                    color: modelData.enabled ? "#abb2bf" : "#545862"
                    font.pixelSize: bar.fontSize
                    font.family: bar.barFontFamily
                  }

                  MouseArea {
                    id: rowMouse
                    anchors.fill: parent
                    hoverEnabled: true
                    onClicked: {
                      if (!modelData.isSeparator && modelData.enabled) {
                        modelData.triggered();
                        bar.activeItem = null;
                      }
                    }
                  }
                }
              }
            }
          }
        }

        // --- Hauptlayout ---
        Item {
          anchors.fill: parent

          // --- Taskbar (links) ---
          RowLayout {
            id: taskbarRow
            anchors {
              left: parent.left
              right: rightRow.left
              rightMargin: 8
              top: parent.top
              bottom: parent.bottom
            }
            spacing: 4

            Repeater {
              model: ToplevelManager.toplevels
              delegate: Item {
                id: toplevelDelegate
                required property var modelData
                Layout.fillWidth: true
                Layout.preferredWidth: 0
                Layout.maximumWidth: visible ? Number.POSITIVE_INFINITY : 0
                height: bar.implicitHeight
                visible: {
                  if (!modelData || !modelData.screens) return false;
                  for (var i = 0; i < modelData.screens.length; i++) {
                    var s = modelData.screens[i];
                    if (s && s.name === bar.screen.name) return true;
                  }
                  return false;
                }
                property bool isFocused: modelData === ToplevelManager.activeToplevel

                Rectangle {
                  anchors.fill: parent
                  color: "#282c34"

                  // Unterstrich für aktives Fenster
                  Rectangle {
                    visible: toplevelDelegate.isFocused
                    anchors {
                      bottom: parent.bottom
                      left: parent.left
                      right: parent.right
                    }
                    height: 2
                    color: "#F2610D"
                  }

                  Text {
                    id: titleText
                    anchors {
                      left: parent.left
                      right: parent.right
                      verticalCenter: parent.verticalCenter
                      leftMargin: 8
                      rightMargin: 8
                    }
                    text: TitleFormat.format(toplevelDelegate.modelData.appId, toplevelDelegate.modelData.title)
                    font.pixelSize: bar.fontSize
                    font.family: bar.barFontFamily
                    elide: Text.ElideRight
                    horizontalAlignment: Text.AlignLeft
                    color: toplevelDelegate.isFocused ? "#F2610D" : "#A1A1A1"
                  }

                  MouseArea {
                    anchors.fill: parent
                    acceptedButtons: Qt.LeftButton | Qt.MiddleButton
                    onClicked: (mouse) => {
                      if (mouse.button === Qt.MiddleButton) {
                        modelData.close();
                      } else {
                        modelData.activate();
                      }
                    }
                  }
                }
              }
            }
          }

          // --- Tray + Uhr (rechts) ---
          Row {
            id: rightRow
            anchors {
              right: parent.right
              rightMargin: 10
              verticalCenter: parent.verticalCenter
            }
            spacing: 8

            Repeater {
              model: SystemTray.items
              delegate: Item {
                id: trayIconRoot
                width: 20
                height: 20
                anchors.verticalCenter: parent.verticalCenter
                Image {
                  anchors.fill: parent
                  source: modelData.icon
                  fillMode: Image.PreserveAspectFit
                }
                MouseArea {
                  anchors.fill: parent
                  acceptedButtons: Qt.LeftButton | Qt.RightButton
                  onClicked: (mouse) => {
                    if (mouse.button === Qt.RightButton && modelData.hasMenu) {
                      bar.activeAnchor = trayIconRoot;
                      bar.activeItem = modelData;
                    } else {
                      modelData.activate();
                      bar.activeItem = null;
                    }
                  }
                }
              }
            }

            Text {
              id: clockDisplay
              color: "#abb2bf"
              font.pixelSize: bar.fontSize
              font.bold: true
              font.family: bar.barFontFamily
              anchors.verticalCenter: parent.verticalCenter
              text: Qt.formatDateTime(new Date(), "hh:mm")
              Timer {
                interval: 1000
                repeat: true
                running: true
                onTriggered: clockDisplay.text = Qt.formatDateTime(new Date(), "hh:mm")
              }
            }
          }
        }

        MouseArea {
          anchors.fill: parent
          z: -1
          onPressed: bar.activeItem = null
        }
      }
    }'';
}

Spoiler: flake.nix

# /etc/nixos/flake.nix
{
  description = "NixOS configuration";

  inputs = {
    nixpkgs.url = "github:NixOS/nixpkgs/nixos-unstable";
    home-manager = {
      url = "github:nix-community/home-manager";
      inputs.nixpkgs.follows = "nixpkgs";
    };
    stylix = {
      url = "github:nix-community/stylix";
      inputs.nixpkgs.follows = "nixpkgs";
    };
  };

  outputs = { self, nixpkgs, home-manager, stylix, ... } @ inputs: {
    nixosConfigurations = {
      pc = nixpkgs.lib.nixosSystem {
        system = "x86_64-linux";
        specialArgs = { inherit inputs; };
        modules = [
           stylix.nixosModules.stylix
          ./configuration.nix
          home-manager.nixosModules.home-manager {
        home-manager.useGlobalPkgs = true;
        home-manager.useUserPackages = true;
       home-manager.backupFileExtension = "backup";

        home-manager.users.rebellz = {
          imports = [
            ./home.nix
            ./hyprland.nix
            ./quickshell-bar.nix
         ];
            };
          }
        ];
      };
    };
  };
}

Nerd Font Icons für TitleFormat kann man hier suchen --> https://www.nerdfonts.com/cheat-sheet



[Deklest]

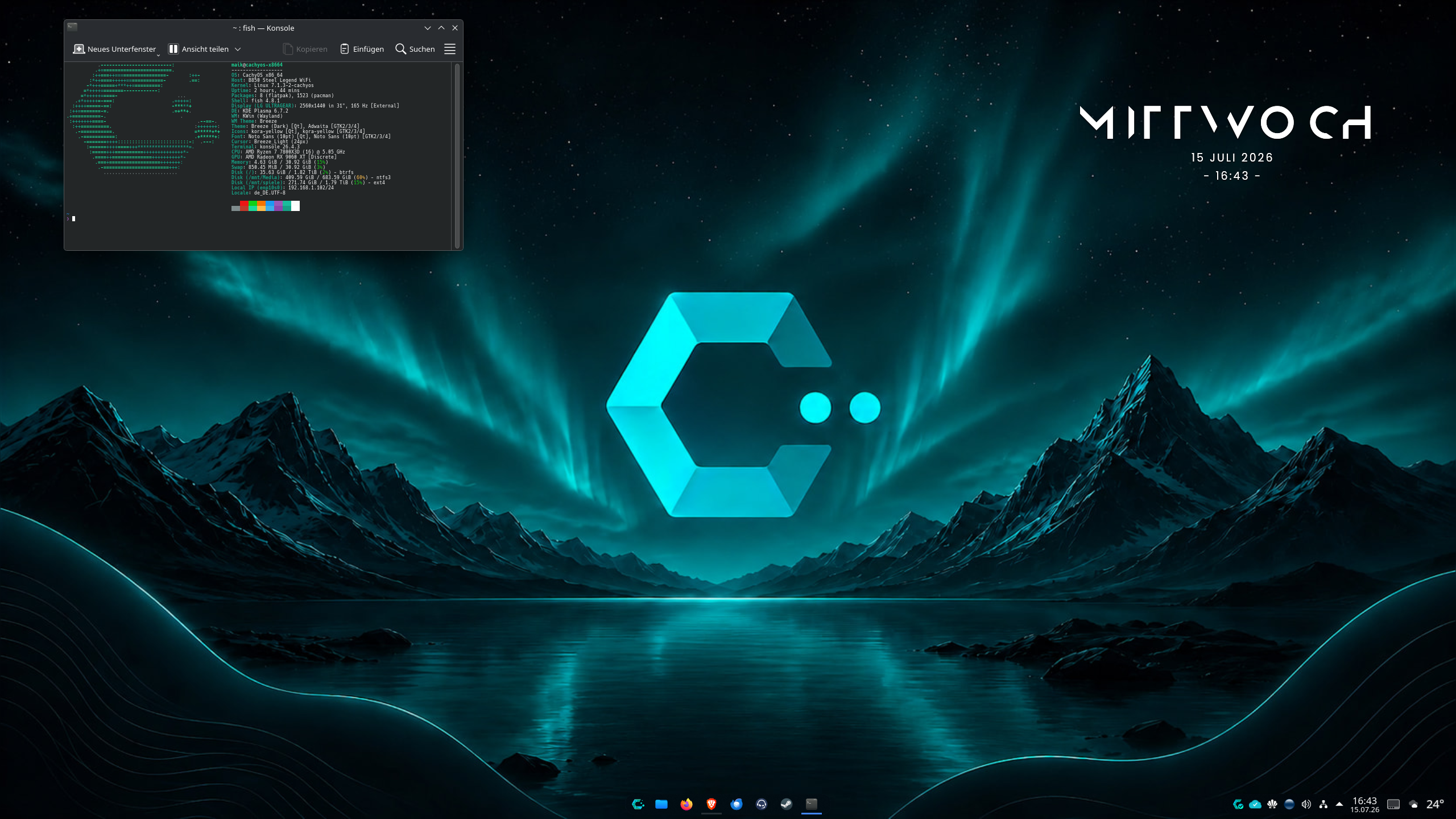

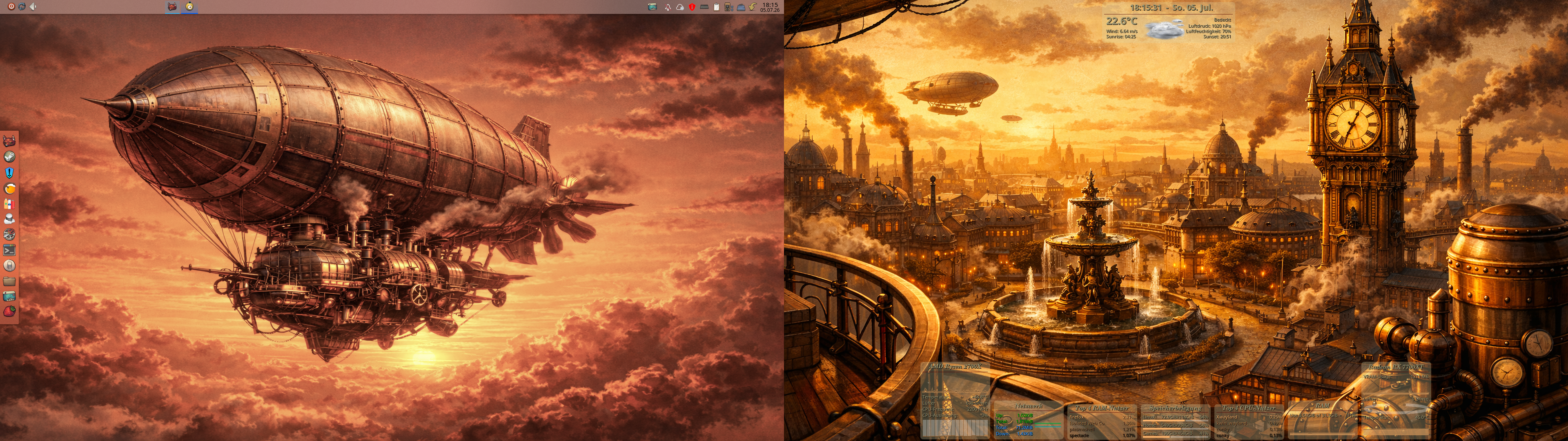

Ich hab mich ja schon lange nicht mehr gemeldet, aber jetzt will ich auch mal wieder. Hatte mal Lust auf was anderes:



[D.S.i.u.S.]

@Deklest Du hast Icons passend zu Desktopbild

Ich habe eher flat Design und weniger 3D



[Deklest]

Na ja, versuche es immer ein bisschen.



[Kabelbaum]

@Deklest sieht top aus. Was sind das für widgets? Das mit dem Wetter ist ja klasse.
