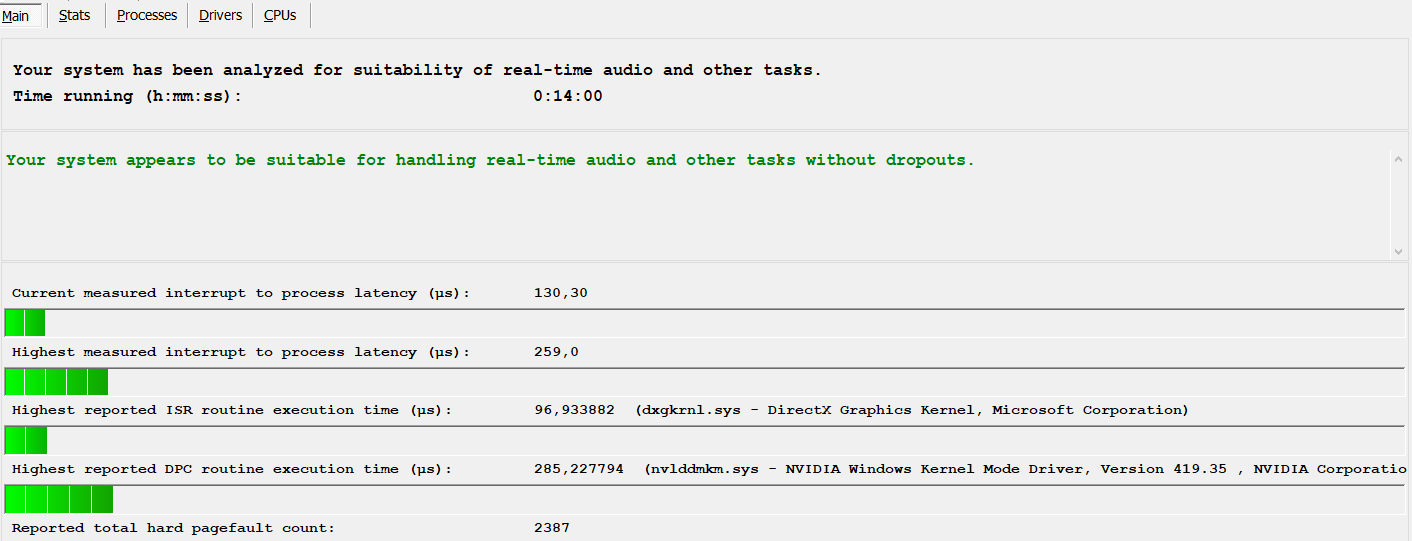

_
CONCLUSION
_
Your system appears to be suitable for handling real-time audio and other tasks without dropouts.
LatencyMon has been analyzing your system for 0:14:00 (h🇲🇲ss) on all processors.
_
SYSTEM INFORMATION
_
Computer name: DESKTOP-J729FU0
OS version: Windows 10 , 10.0, build: 17763 (x64)
Hardware: ASUSTeK COMPUTER INC., Z170 PRO GAMING
CPU: GenuineIntel Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz
Logical processors: 8
Processor groups: 1
RAM: 16324 MB total
_
CPU SPEED
_
Reported CPU speed: 4008 MHz
Note: reported execution times may be calculated based on a fixed reported CPU speed. Disable variable speed settings like Intel Speed Step and AMD Cool N Quiet in the BIOS setup for more accurate results.
WARNING: the CPU speed that was measured is only a fraction of the CPU speed reported. Your CPUs may be throttled back due to variable speed settings and thermal issues. It is suggested that you run a utility which reports your actual CPU frequency and temperature.
_
MEASURED INTERRUPT TO USER PROCESS LATENCIES
_
The interrupt to process latency reflects the measured interval that a usermode process needed to respond to a hardware request from the moment the interrupt service routine started execution. This includes the scheduling and execution of a DPC routine, the signaling of an event and the waking up of a usermode thread from an idle wait state in response to that event.
Highest measured interrupt to process latency (µs): 259,0
Average measured interrupt to process latency (µs): 2,054974
Highest measured interrupt to DPC latency (µs): 254,80
Average measured interrupt to DPC latency (µs): 0,664391
_

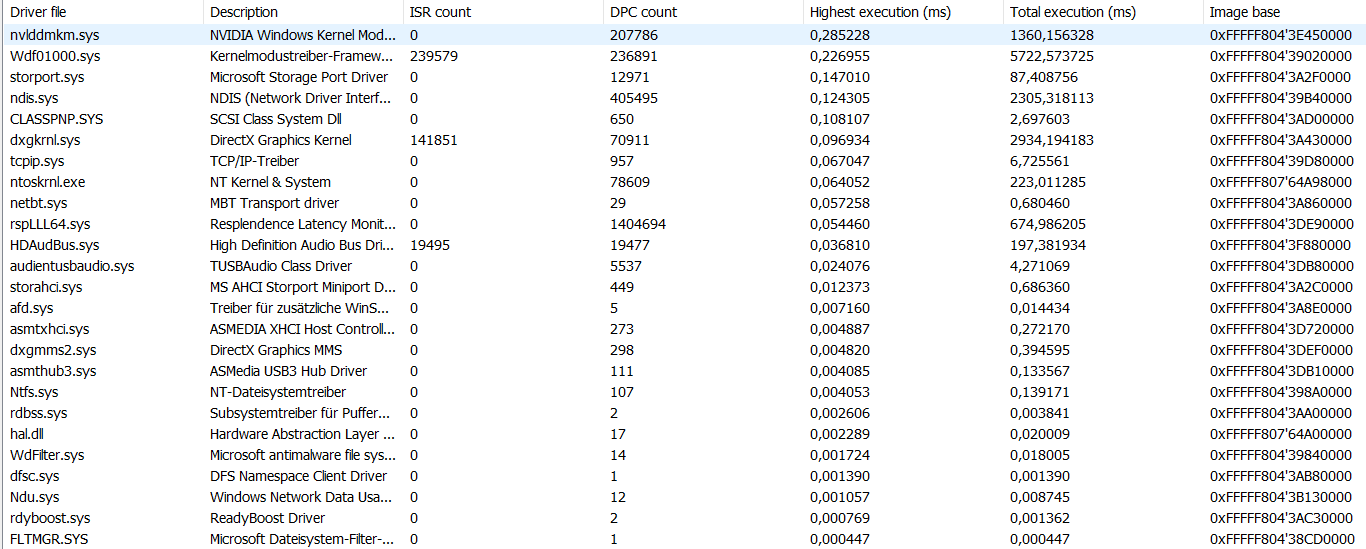

REPORTED ISRs
_
Interrupt service routines are routines installed by the OS and device drivers that execute in response to a hardware interrupt signal.
Highest ISR routine execution time (µs): 96,933882
Driver with highest ISR routine execution time: dxgkrnl.sys - DirectX Graphics Kernel, Microsoft Corporation
Highest reported total ISR routine time (%): 0,033848
Driver with highest ISR total time: dxgkrnl.sys - DirectX Graphics Kernel, Microsoft Corporation
Total time spent in ISRs (%) 0,038464
ISR count (execution time <250 µs): 400925
ISR count (execution time 250-500 µs): 0
ISR count (execution time 500-999 µs): 0
ISR count (execution time 1000-1999 µs): 0
ISR count (execution time 2000-3999 µs): 0
ISR count (execution time >=4000 µs): 0
_
REPORTED DPCs
_
DPC routines are part of the interrupt servicing dispatch mechanism and disable the possibility for a process to utilize the CPU while it is interrupted until the DPC has finished execution.
Highest DPC routine execution time (µs): 285,227794
Driver with highest DPC routine execution time: nvlddmkm.sys - NVIDIA Windows Kernel Mode Driver, Version 419.35 , NVIDIA Corporation
Highest reported total DPC routine time (%): 0,083143
Driver with highest DPC total execution time: Wdf01000.sys - Kernelmodustreiber-Frameworklaufzeit, Microsoft Corporation
Total time spent in DPCs (%) 0,162702
DPC count (execution time <250 µs): 2445295
DPC count (execution time 250-500 µs): 0
DPC count (execution time 500-999 µs): 6
DPC count (execution time 1000-1999 µs): 0
DPC count (execution time 2000-3999 µs): 0
DPC count (execution time >=4000 µs): 0
_
REPORTED HARD PAGEFAULTS
_
Hard pagefaults are events that get triggered by making use of virtual memory that is not resident in RAM but backed by a memory mapped file on disk. The process of resolving the hard pagefault requires reading in the memory from disk while the process is interrupted and blocked from execution.
NOTE: some processes were hit by hard pagefaults. If these were programs producing audio, they are likely to interrupt the audio stream resulting in dropouts, clicks and pops. Check the Processes tab to see which programs were hit.
Process with highest pagefault count: chrome.exe
Total number of hard pagefaults 2387
Hard pagefault count of hardest hit process: 424
Number of processes hit: 27
_
PER CPU DATA
_
CPU 0 Interrupt cycle time (s): 21,180954
CPU 0 ISR highest execution time (µs): 96,933882
CPU 0 ISR total execution time (s): 2,556097
CPU 0 ISR count: 399104
CPU 0 DPC highest execution time (µs): 285,227794
CPU 0 DPC total execution time (s): 9,138777
CPU 0 DPC count: 2224217
_
CPU 1 Interrupt cycle time (s): 2,075123
CPU 1 ISR highest execution time (µs): 82,936377
CPU 1 ISR total execution time (s): 0,027599
CPU 1 ISR count: 1685
CPU 1 DPC highest execution time (µs): 184,015220
CPU 1 DPC total execution time (s): 0,047287
CPU 1 DPC count: 4270
_
CPU 2 Interrupt cycle time (s): 4,340868
CPU 2 ISR highest execution time (µs): 54,824850
CPU 2 ISR total execution time (s): 0,001582
CPU 2 ISR count: 136
CPU 2 DPC highest execution time (µs): 119,174651
CPU 2 DPC total execution time (s): 1,613295
CPU 2 DPC count: 180124
_
CPU 3 Interrupt cycle time (s): 1,776075
CPU 3 ISR highest execution time (µs): 0,0
CPU 3 ISR total execution time (s): 0,0
CPU 3 ISR count: 0
CPU 3 DPC highest execution time (µs): 53,662176
CPU 3 DPC total execution time (s): 0,005277
CPU 3 DPC count: 1486
_
CPU 4 Interrupt cycle time (s): 1,945834
CPU 4 ISR highest execution time (µs): 0,0
CPU 4 ISR total execution time (s): 0,0
CPU 4 ISR count: 0
CPU 4 DPC highest execution time (µs): 46,742515
CPU 4 DPC total execution time (s): 0,075107
CPU 4 DPC count: 23217
_
CPU 5 Interrupt cycle time (s): 1,806734
CPU 5 ISR highest execution time (µs): 0,0
CPU 5 ISR total execution time (s): 0,0
CPU 5 ISR count: 0
CPU 5 DPC highest execution time (µs): 43,350299
CPU 5 DPC total execution time (s): 0,009487
CPU 5 DPC count: 2408
_
CPU 6 Interrupt cycle time (s): 2,028968
CPU 6 ISR highest execution time (µs): 0,0
CPU 6 ISR total execution time (s): 0,0
CPU 6 ISR count: 0
CPU 6 DPC highest execution time (µs): 147,010479
CPU 6 DPC total execution time (s): 0,032069
CPU 6 DPC count: 6036
_
CPU 7 Interrupt cycle time (s): 1,807603
CPU 7 ISR highest execution time (µs): 0,0
CPU 7 ISR total execution time (s): 0,0
CPU 7 ISR count: 0
CPU 7 DPC highest execution time (µs): 28,547156
CPU 7 DPC total execution time (s): 0,014523
CPU 7 DPC count: 3543
_
