Radeon 9500, diese Karte auf 9700 modifizierbar?
- Ersteller Killugummel
- Erstellt am

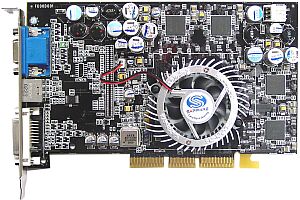

das layout passt nicht
wie man sieht sind an der rechten seite überhaupt keine rams verbaut
also handelt es sich bei dieser karte nur um eine 64mb version
die abgebildete karte kannst du höchstens zu einer 9500pro mit nur 64mb ram machen
sonst musste dir ne andere holen wobei es glücksache ist ob es funktioniert, da die hersteller seit geräumer zeit neue platinen auch bei 9500 verwenden
wie man sieht sind an der rechten seite überhaupt keine rams verbaut
also handelt es sich bei dieser karte nur um eine 64mb version
die abgebildete karte kannst du höchstens zu einer 9500pro mit nur 64mb ram machen
sonst musste dir ne andere holen wobei es glücksache ist ob es funktioniert, da die hersteller seit geräumer zeit neue platinen auch bei 9500 verwenden
- Registriert
- Feb. 2003
- Beiträge
- 83
Rechts neben den lüfter sind doch zwei rams also muss es ja eine mit 128 MB sein
Hier mal die beschreibung
EVIL COMMANDO X Radeon 9500 AGP 8X Accelerator -based on the ATI RADEON 9500 chipset delivers the first DX9 with latest AGP 8x technology and leads performance in every high-end category. Through a combination of incredible 3D rendering performance, sophisticated real-time visual effects, unsurpassed image quality and cutting-edge video features, it takes the PC Gaming and entertainment experience to a totally new level beyond user expectation at a good premium.
Specification
· Powered by the revolutionary AGP 8x RADEON 9500 Visual Processing Unit (VPU).
· Supports 4 parallel rendering pipelines process up to 1.1 billion pixels per second.
· 4 parallel geometry engines process up to 275 million transformed and lit polygons per second.
· Complete DirectX 9.0 support for precedented realism and sophisticated visual effects.
· SMOOTHVISION 2.0 technology provides new levels of image quality with advanced full-scene anti-aliasing (FSAA) and anisotropic filtering.
· Revolutionary new video features including VIDEOSHADER and FULLSTREAM technologies.
· Supports 128MB of powerful double data rate (DDR) memory @540Mhz clock speed with peak 8.8GB/sec bandwidth.
· Compliant to AGP 3.0 specification by Intel Corporation supports the corresponding technology, AGP 8X, doubles the peak bandwidth capability of the AGP bus to 2.1GB/s, while retaining compatibility with the previous-generation AGP 4X technology.
· Featuring ATI -Industry-leading software suite for the best enhancement and accelerate the ultimate visual experience.
· First 8-pixel pipeline architecture provides top 3D performance for both Direct3D and OpenGL games and applications.
· Display configuration supports CRT, DVI-I & TV-Out (PAL/NTSC).
· Multi display configuration support with ATI HYDRAVISION software.
· Industry-leading hardware DVD video playback with software DVD player support.
· Supports 3D resolutions (32-bit color) up to 2048x1536.
· First to fully support DirectX 9.0 and the latest OpenGL functionality
3D Features
· Four parallel rendering pipelines.
· Four parallel geometry engines.
· AGP 8x technology support.
· SMARTSHADER 2.0.
· Programmable pixel and vertex shaders.
· 16 textures per pass.
· Pixel shaders up to 160 instructions with 128-bit floating point precision
· Vertex shaders up to 1024 instructions with flow control.
· Multiple render target support.
· Shadow volume rendering acceleration.
· High precision 10-bit per channel frame buffer support.
· Supports DirectX 9.0 and the latest version of OpenGL.
· SMOOTHVISION 2.0.
· 2x/4x/6x full scene anti-aliasing modes.
· Adaptive algorithm with programmable sample patterns.
· 2x/4x/8x/16x anisotropic filtering modes.
· Adaptive algorithm with bi-linear (performance) and tri-linear (quality) options.
· ATI latest HYPER Z III support.
· 3-level Hierarchical Z-Buffer with early Z test.
· Lossless Z-Buffer compression (up to 24:1)
· Fast Z-Buffer Clear.
· TRUFORM 2.0.
· 2nd generation N-Patch higher order surface support.
· Discrete and continuous tessellation levels per polygon.
· Displacement mapping.
· VIDEOSHADER.
· Seamless integration of pixel shaders with video.
· FULLSTREAM video de-blocking technology for Internet Video.
· Noise removal filtering for captured video.
· MPEG-2 decoding with motion compensation, iDCT and color space conversion.
· All-format DTV/HDTV decoding.
· YPrPb component output.
· Adaptive de-interlacing and frame rate conversion.
· Dual integrated display controllers.
· Dual integrated 10-bit per channel 400 MHz DACs.
· Integrated 165 MHz TMDS transmitter (DVI & HDCP compliant).
· Integrated TV Output support up to 1024x768 resolution (PAL/NTSC)
· Optimized for Pentium 4 SSE2 and AMD Athlon 3Dnow!
· PC 2002 compliant.
Revolutionary New Video Features
· Unique VIDEOSHADER engine uses programmable pixel shaders to accelerate video processing and provide better-looking visuals.
· ATI new FULLSTREAM technology removes blocky artifacts from Streaming and Internet video and provides sharper image quality.
Operating Systems Support
· Windows XP
· Windows 2000
· Windows Me
Display Support
· VGA connector for analog CRT
· S-video or composite connector for TV / VCR
· DVI-I connector for digital CRT or flat panel
· Independent resolutions and refresh rates for any two connected displays
System Requirements
· Intel Pentium 4/III/II/Celeron, AMD K6/Duron/Athlon/Athlon XP or compatible with AGP 2X (3.3v), 4X (1.5V), 8X (0.8v) or Universal AGP 3.0 bus configuration (2X/4X/8X).
· 128MB of system memory
· Installation software requires CD-ROM drive
· DVD playback requires DVD drive
· Minimum 350 watts power supply or above.
Hier mal die beschreibung
EVIL COMMANDO X Radeon 9500 AGP 8X Accelerator -based on the ATI RADEON 9500 chipset delivers the first DX9 with latest AGP 8x technology and leads performance in every high-end category. Through a combination of incredible 3D rendering performance, sophisticated real-time visual effects, unsurpassed image quality and cutting-edge video features, it takes the PC Gaming and entertainment experience to a totally new level beyond user expectation at a good premium.
Specification
· Powered by the revolutionary AGP 8x RADEON 9500 Visual Processing Unit (VPU).
· Supports 4 parallel rendering pipelines process up to 1.1 billion pixels per second.
· 4 parallel geometry engines process up to 275 million transformed and lit polygons per second.
· Complete DirectX 9.0 support for precedented realism and sophisticated visual effects.
· SMOOTHVISION 2.0 technology provides new levels of image quality with advanced full-scene anti-aliasing (FSAA) and anisotropic filtering.
· Revolutionary new video features including VIDEOSHADER and FULLSTREAM technologies.
· Supports 128MB of powerful double data rate (DDR) memory @540Mhz clock speed with peak 8.8GB/sec bandwidth.
· Compliant to AGP 3.0 specification by Intel Corporation supports the corresponding technology, AGP 8X, doubles the peak bandwidth capability of the AGP bus to 2.1GB/s, while retaining compatibility with the previous-generation AGP 4X technology.
· Featuring ATI -Industry-leading software suite for the best enhancement and accelerate the ultimate visual experience.
· First 8-pixel pipeline architecture provides top 3D performance for both Direct3D and OpenGL games and applications.
· Display configuration supports CRT, DVI-I & TV-Out (PAL/NTSC).
· Multi display configuration support with ATI HYDRAVISION software.
· Industry-leading hardware DVD video playback with software DVD player support.
· Supports 3D resolutions (32-bit color) up to 2048x1536.
· First to fully support DirectX 9.0 and the latest OpenGL functionality
3D Features
· Four parallel rendering pipelines.
· Four parallel geometry engines.
· AGP 8x technology support.
· SMARTSHADER 2.0.
· Programmable pixel and vertex shaders.
· 16 textures per pass.
· Pixel shaders up to 160 instructions with 128-bit floating point precision
· Vertex shaders up to 1024 instructions with flow control.
· Multiple render target support.
· Shadow volume rendering acceleration.
· High precision 10-bit per channel frame buffer support.
· Supports DirectX 9.0 and the latest version of OpenGL.
· SMOOTHVISION 2.0.
· 2x/4x/6x full scene anti-aliasing modes.
· Adaptive algorithm with programmable sample patterns.
· 2x/4x/8x/16x anisotropic filtering modes.
· Adaptive algorithm with bi-linear (performance) and tri-linear (quality) options.
· ATI latest HYPER Z III support.
· 3-level Hierarchical Z-Buffer with early Z test.
· Lossless Z-Buffer compression (up to 24:1)
· Fast Z-Buffer Clear.
· TRUFORM 2.0.
· 2nd generation N-Patch higher order surface support.
· Discrete and continuous tessellation levels per polygon.
· Displacement mapping.
· VIDEOSHADER.
· Seamless integration of pixel shaders with video.
· FULLSTREAM video de-blocking technology for Internet Video.
· Noise removal filtering for captured video.
· MPEG-2 decoding with motion compensation, iDCT and color space conversion.
· All-format DTV/HDTV decoding.
· YPrPb component output.
· Adaptive de-interlacing and frame rate conversion.
· Dual integrated display controllers.
· Dual integrated 10-bit per channel 400 MHz DACs.
· Integrated 165 MHz TMDS transmitter (DVI & HDCP compliant).
· Integrated TV Output support up to 1024x768 resolution (PAL/NTSC)
· Optimized for Pentium 4 SSE2 and AMD Athlon 3Dnow!
· PC 2002 compliant.
Revolutionary New Video Features
· Unique VIDEOSHADER engine uses programmable pixel shaders to accelerate video processing and provide better-looking visuals.
· ATI new FULLSTREAM technology removes blocky artifacts from Streaming and Internet video and provides sharper image quality.
Operating Systems Support
· Windows XP
· Windows 2000
· Windows Me
Display Support
· VGA connector for analog CRT
· S-video or composite connector for TV / VCR
· DVI-I connector for digital CRT or flat panel
· Independent resolutions and refresh rates for any two connected displays
System Requirements
· Intel Pentium 4/III/II/Celeron, AMD K6/Duron/Athlon/Athlon XP or compatible with AGP 2X (3.3v), 4X (1.5V), 8X (0.8v) or Universal AGP 3.0 bus configuration (2X/4X/8X).
· 128MB of system memory
· Installation software requires CD-ROM drive
· DVD playback requires DVD drive
· Minimum 350 watts power supply or above.
MATRIX_Morpheus
Lieutenant
- Registriert
- Juni 2002
- Beiträge
- 641
Das Layout wäre schon das richtige, aber ich seh auch nur 64MB RAM.
- Registriert
- Feb. 2003
- Beiträge
- 83
mit der abgebildeten karte würde es prinzipiell gehen
jedoch verbaut sapphire dieses lauyout nichtmehr
das bild ahst du bsetimmt von geizhals oder ähnlichem die eigentlichen platinen von sapphire sind rot und haben nun auch das neue layout so das man sie ncihtmerh moddden kann
jedoch verbaut sapphire dieses lauyout nichtmehr
das bild ahst du bsetimmt von geizhals oder ähnlichem die eigentlichen platinen von sapphire sind rot und haben nun auch das neue layout so das man sie ncihtmerh moddden kann
- Registriert
- Feb. 2003
- Beiträge
- 83
Das habe ich auch von Geizhals kann du mir vieleicht eine seite sagen wo es noch welche mit dem alten layout gibt?
MATRIX_Morpheus
Lieutenant
- Registriert
- Juni 2002
- Beiträge
- 641
Schau mal bei http://www.radeon-shop.de/ vorbei.
MATRIX_Morpheus
Lieutenant
- Registriert
- Juni 2002
- Beiträge
- 641
Soviel ich verstanden habe, lassen sich sicher alle modifizieren, bei denen dabei steht, dass sie als 9700 getestet wurden
Willst du weniger bezahlen und ein bisschen riskieren, dann kaufst du eine, welche zwar ein altes Platinen-Layout hat, aber nicht getestet wurde.
Willst du weniger bezahlen und ein bisschen riskieren, dann kaufst du eine, welche zwar ein altes Platinen-Layout hat, aber nicht getestet wurde.
mAxmUrdErEr
Cadet 4th Year
- Registriert
- Jan. 2003
- Beiträge
- 110
Original erstellt von Admirale
jo, cooler shop @ Matrix_Morpheus!
Aber welche lässt sich nun modifizieren??
das sind schon wieder zu viele
Hat jemand ahnung welche es ist??
Dann postet schnell hier rein!
Connect3D hat immernoch das alte layout bei den Radeon 9500 (128MB)
