Hey liebe CB User,
wollte hier einen Sammelthread für alle Besitzer eines Asus X99-A II Intel X99 machen, sodass wir unsere Erfahrungen teilen, und eventuelle Probleme schneller lösen können.
zB:
-OC
-Asus Features
-UEFI-BIOS

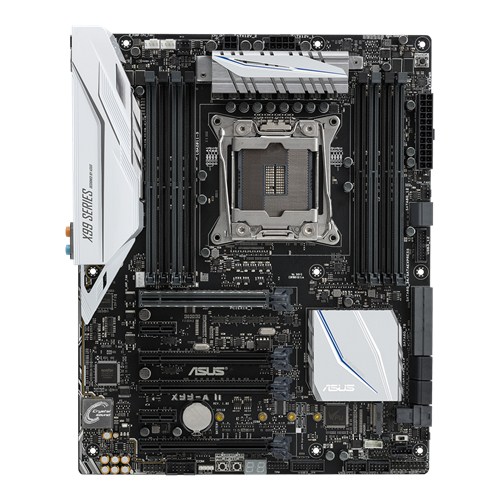

![jFg52QyhBo8flBRH_setting_fff_1_90_end_500[1].jpg jFg52QyhBo8flBRH_setting_fff_1_90_end_500[1].jpg](https://pics.computerbase.de/forum/attachments/471/471738-936f3bf8660ec3db8997427521f85b07.jpg)
![3aHI3OPI8PxMqWpw_setting_fff_1_90_end_500[1].jpg 3aHI3OPI8PxMqWpw_setting_fff_1_90_end_500[1].jpg](https://pics.computerbase.de/forum/attachments/471/471739-3ecccad529f07e9639182f9b7c0a2f83.jpg)
![KDq28uylei5RjkBg_setting_fff_1_90_end_500[1].jpg KDq28uylei5RjkBg_setting_fff_1_90_end_500[1].jpg](https://pics.computerbase.de/forum/attachments/471/471740-287209ba65898f69ffc994f14d48331b.jpg)
Herstellerseite: https://www.asus.com/de/Motherboards/X99-A-II/
Gleich mal eine Frage hat schon jemand das interne BIOS tool zum Übertackten verwendet. und kann seine Erfahrungen damit hier teilen![Lächeln :) :)](/forum/styles/smilies/smile.gif)
wollte hier einen Sammelthread für alle Besitzer eines Asus X99-A II Intel X99 machen, sodass wir unsere Erfahrungen teilen, und eventuelle Probleme schneller lösen können.
zB:
-OC
-Asus Features
-UEFI-BIOS
![jFg52QyhBo8flBRH_setting_fff_1_90_end_500[1].jpg jFg52QyhBo8flBRH_setting_fff_1_90_end_500[1].jpg](https://pics.computerbase.de/forum/attachments/471/471738-936f3bf8660ec3db8997427521f85b07.jpg)
![3aHI3OPI8PxMqWpw_setting_fff_1_90_end_500[1].jpg 3aHI3OPI8PxMqWpw_setting_fff_1_90_end_500[1].jpg](https://pics.computerbase.de/forum/attachments/471/471739-3ecccad529f07e9639182f9b7c0a2f83.jpg)
![KDq28uylei5RjkBg_setting_fff_1_90_end_500[1].jpg KDq28uylei5RjkBg_setting_fff_1_90_end_500[1].jpg](https://pics.computerbase.de/forum/attachments/471/471740-287209ba65898f69ffc994f14d48331b.jpg)
Herstellerseite: https://www.asus.com/de/Motherboards/X99-A-II/

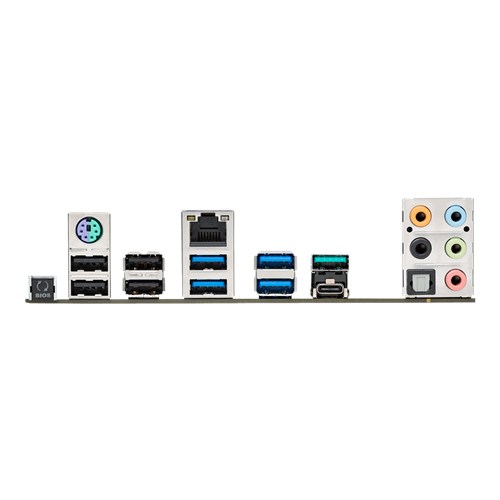

Back I/O Ports | Internal I/O Ports | Expansion Slots | Special Features |
1 x PS/2 keyboard/mouse combo port(s) 1 x LAN (RJ45) port(s) 2 x USB 3.1 ()Type-A + Type-C 4 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) | 1 x U.2 port 1 x AAFP connector 1 x RGB Header(s) 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS jumper(s) 1 x Water Pump header (4-pin) 1 x 14-1 pin TPM connector 1 x COM port header 1 x High AMP Fan header (4-pin | 40-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16 or x16/x16, x8/x16/x8) *1 1 x PCIe 2.0 x16 (x4 mode) *3 2 x PCIe 2.0 x1 (x1 mode) *3 28-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x8/x8/x8) *2 1 x PCIe 2.0 x16 (x4 mode) *3 2 x PCIe 2.0 x1 (x1 mode) *3 | 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 8 Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability ASUS TPU : - Auto Tuning - GPU Boost ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 8 Phase Power Design - Industry leading Digital 4 Phase DRAM Power Design - CPU Power Utility - DRAM Power Utility ASUS Exclusive Features : - Remote GO! - USB BIOS Flashback - MemOK! - AI Suite 3 - Ai Charger+ - USB Charger+ - M.2 & SATA Express - Anti-Surge - Onboard Button : Power/Reset - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.1 Boost - Turbo LAN - Crystal Sound 3 - EZ XMP ASUS Exclusive Features - Mobo Connect - PC Cleaner Remote Entertainment - Media Streamer - HyStream ASUS Quiet Thermal Solution : - ASUS Fan Xpert 4 ASUS EZ DIY : - Precision Tweaker 2 - ASUS O.C. Tuner - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Special Memory O.C. Design AURA: RGB Lighting Control Special Memory O.C. Design Turbo App |
Ergänzung ()
Gleich mal eine Frage hat schon jemand das interne BIOS tool zum Übertackten verwendet. und kann seine Erfahrungen damit hier teilen
![Lächeln :) :)](/forum/styles/smilies/smile.gif)
