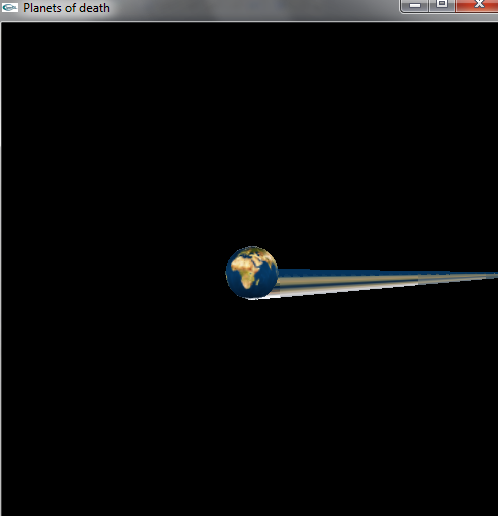

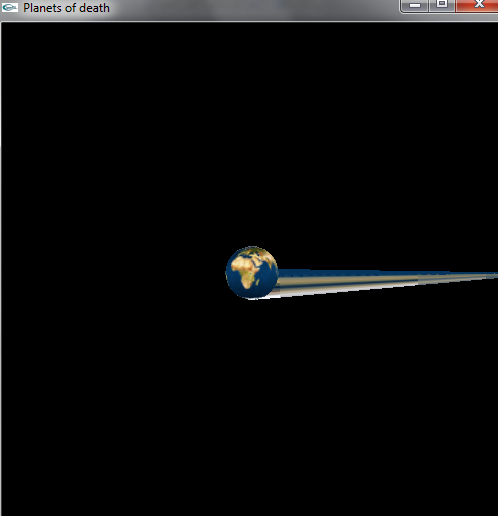

Hab leider einen kleinen Bug bei der Darstellung einer Sphäre, aber dazu am besten das Bild im Anhang betrachten... leider komme ich nicht drauf wo der Fehler steckt, da ich das Tutorial ned ganz verstanden haben. Ich hänge mal alle wichtigen Code-Elemente an... vielleicht weiß ja einer von euch wo sich der Teufel im Detail versteckt.
Sphäre erzeugen:
Textur laden:
Sphäre anzeigen:
Sphäre erzeugen:
Code:
void CreateSphere (double R, double H, double K, double Z)
{
int n;
double a;
double b;
n = 0;
for( b = 0; b <= 90 - space; b+=space)
{
for( a = 0; a <= 360 - space; a+=space)
{
VERTEX[n].X = R * sin((a) / 180 * PI) * sin((b) / 180 * PI) - H;
VERTEX[n].Y = R * cos((a) / 180 * PI) * sin((b) / 180 * PI) + K;
VERTEX[n].Z = R * cos((b) / 180 * PI) - Z;
VERTEX[n].V = (2 * b) / 360;
VERTEX[n].U = (a) / 360;
n++;
VERTEX[n].X = R * sin((a) / 180 * PI) * sin((b + space) / 180 * PI) - H;
VERTEX[n].Y = R * cos((a) / 180 * PI) * sin((b + space) / 180 * PI) + K;
VERTEX[n].Z = R * cos((b + space) / 180 * PI) - Z;
VERTEX[n].V = (2 * (b + space)) / 360;
VERTEX[n].U = (a) / 360;
n++;
VERTEX[n].X = R * sin((a + space) / 180 * PI) * sin((b) / 180 * PI) - H;
VERTEX[n].Y = R * cos((a + space) / 180 * PI) * sin((b) / 180 * PI) + K;
VERTEX[n].Z = R * cos((b) / 180 * PI) - Z;
VERTEX[n].V = (2 * b) / 360;
VERTEX[n].U = (a + space) / 360;
n++;
VERTEX[n].X = R * sin((a + space) / 180 * PI) * sin((b + space) / 180 * PI) - H;
VERTEX[n].Y = R * cos((a + space) / 180 * PI) * sin((b + space) / 180 * PI) + K;
VERTEX[n].Z = R * cos((b + space) / 180 * PI) - Z;
VERTEX[n].V = (2 * (b + space)) / 360;
VERTEX[n].U = (a + space) / 360;
n++;
}
}
}
Textur laden:
Code:
GLuint LoadTextureRAW( const char * filename )
{
GLuint texture;
int width, height;
unsigned char * data;
FILE * file;
file = fopen( filename, "rb" );
if ( file == NULL )
return 0;
width = 1024;
height = 512;
data = (unsigned char *)malloc( width * height * 3 );
fread( data, width * height * 3, 1, file );
fclose( file );
glGenTextures( 1, &texture );
glBindTexture( GL_TEXTURE_2D, texture );
glTexEnvf( GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_MODULATE );
glTexParameterf( GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR_MIPMAP_NEAREST );
glTexParameterf( GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR );
glTexParameterf( GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT );
glTexParameterf( GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT );
gluBuild2DMipmaps( GL_TEXTURE_2D, 3, width, height, GL_RGB, GL_UNSIGNED_BYTE, data );
free( data );
return texture;
}
Sphäre anzeigen:
Code:
void DisplaySphere (double R, GLuint texture)
{
int b;
glScalef (0.0125 * R, 0.0125 * R, 0.0125 * R);
glRotatef (90, 1, 0, 0);
glBindTexture (GL_TEXTURE_2D, texture);
glBegin (GL_TRIANGLE_STRIP);
for ( b = 0; b <= VertexCount; b++)
{
glTexCoord2f (VERTEX[b].U, VERTEX[b].V);
glVertex3f (VERTEX[b].X, VERTEX[b].Y, -VERTEX[b].Z);
}
for ( b = 0; b <= VertexCount; b++)
{
glTexCoord2f (VERTEX[b].U, -VERTEX[b].V);
glVertex3f (VERTEX[b].X, VERTEX[b].Y, VERTEX[b].Z);
}
glEnd();
}
